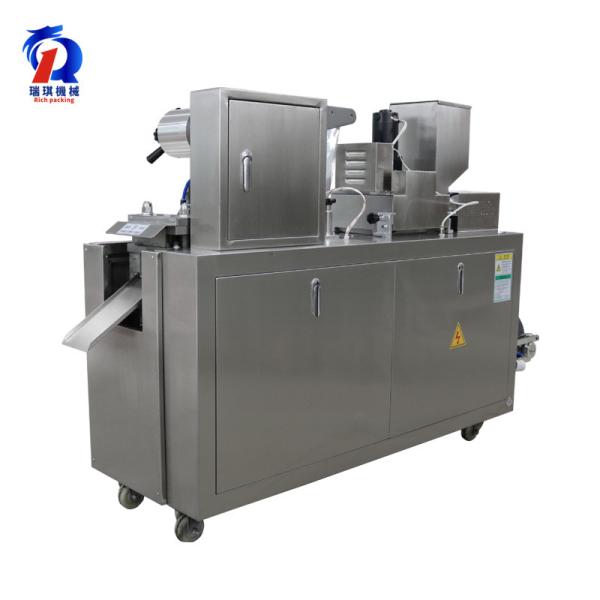

Automatic Blister Packing Machine Pharmacy Food Pill Tablet Capsule Blister Packaging Machine
Features:
1.This automatic alu/pvc blister packing machine is newly developed and innovated by our company, and technology of blister packing machine is advanced in China by now.
2.This blister packing machine is widely used for the aluminum-plastic / paper-plastic / aluminum-aluminum sealing & packing of capsules, tablets, honey pills, candies, disposable syringes or irregular products in industries of
3.The automatic blister packing machinery's spindle locating devices with gear racks are equipped in the devices of forming, thermal sealing, batch No. printing, impressing and cutting, etc, and when the handle is rotated, all these devices can move flexibly in the spindle. There is a ruler of blister packing machine, with which it's convenient to position fast and correctly.
4.There are double oscillating rods in the manipulator, the puling travel's range is increased to 180mm, so the blister package machine with all kinds of size can be satisfied.
5.The automatic blister packing machine's procedure of feeding, forming, heat-sealing, impressing, batch number printing and cutting is accomplished automatically and continuously.
6.The blister pack machine is small in size, with frequency inverter and ease of operation.
The blister packing machine reaches GMP standard requirement.
7.The blister packing machinery is for Alu-PVC and ALu-Alu forming blister for capsule, pill and tablets.
| Model | DPP-80 |
| Blanking | 10～40 times/min |
| Production Capacity | 2400 plates/h |
| Max. Shaping Dia. And Depth | 70*110*15mm Max. Depth 25mm(custom-made) |
| Standard Travel Range | 30～80mm |
| Standard Plate | 80*57mm |
| Power of Main Motor | 0.75kW |
| Total Power | 2.4kW |
| Power | 380V/220V/50Hz |
| Vacuum | 0.4MPa-0.6MPa |
| Noise | <75dBA |
| Thickness and Width of PVC | 0.15～0.5*120mm |
| Thickness and Width of PTP | 0.02～0.035*120mm |
| Dialyzing Paper | 50～100g*120mm |
| Mold Cooling | Running water or circulating water |
| Weight | Net weight 415 kg ;Gross weight465 kg |
| Overall Size of Machine | 1830*580*1050 mm |
| Packing Size | 1600*750*1200mm |

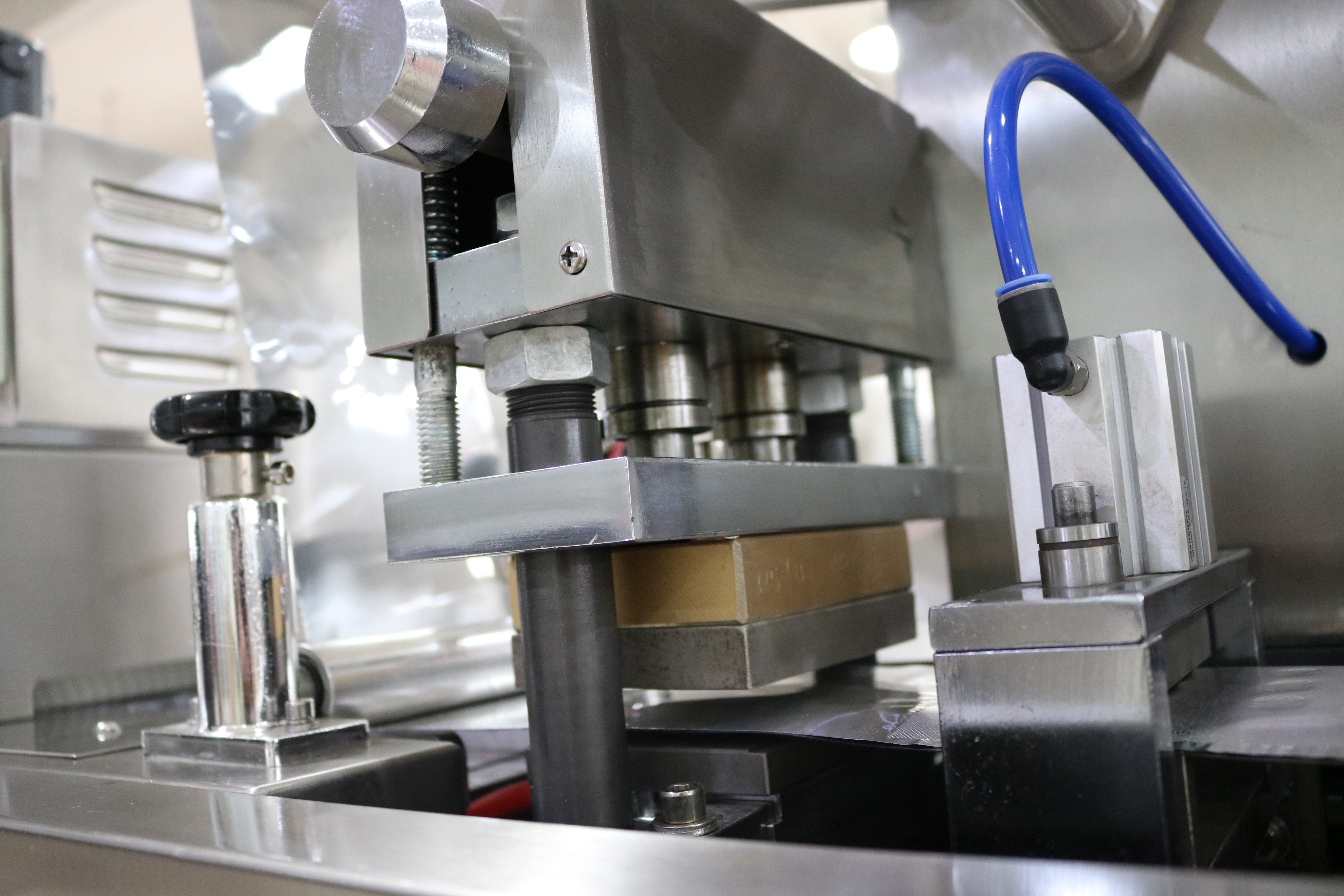

Molding aluminum alloy material, endothermic, easy polished, smooth mold, easy molding.Hot sealing die using stainless iron, high hardness, no rust, stamping die chlorine 12 molybdenum vanadium. Blister Packing machine of Guangdong Rich Packing Machinery Co. Ltd could always keep the blister packaging machine high quality.
There is part of samples of blister pack machinery ,tablet, capsule, candy, and irregular products.By the way, you could share us your products then we could test the machine for you.
